    Hydrotreating | Co-processing for diesel hydrotreating

    The first and simple step on your renewable diesel journey

    Co-processing provides an easy way for refineries to start their renewable journey. By replacing even low amounts of fossil feedstock with renewable feedstock, your refinery can produce renewable fuel – and take the first step towards becoming a biorefinery.

    How does it work?

    Renewable feedstock can be introduced directly into your diesel hydrotreater with your fossil feed. The end-product will be a combination of renewable and fossil diesel. The renewable propane and methane will be released through the off-gases.

    In most cases, up to 10% renewable feedstock can be added with limited or no equipment modifications. We do, however recommended installing a selective renewable grading and hydrodeoxygenation (HDO) catalyst for maximum yield and contaminant pick-up capacity.


    For co-processing with more than 10% renewable feedstock, a revamp may be required, but this solution is still faster and with lower CAPEX than a grassroot unit.


    Benefits of choosing renewable co-processing in your diesel hydrotreater for production of renewable fuel

    • Limited or no revamp of plant required

    • Renewable grading and HDO catalyst can be included fast, e.g., by next turn-around or even sooner by skimming

    • It’s a low CAPEX solution

    • Easy implementation – no need to wait for 100% renewable grassroot unit

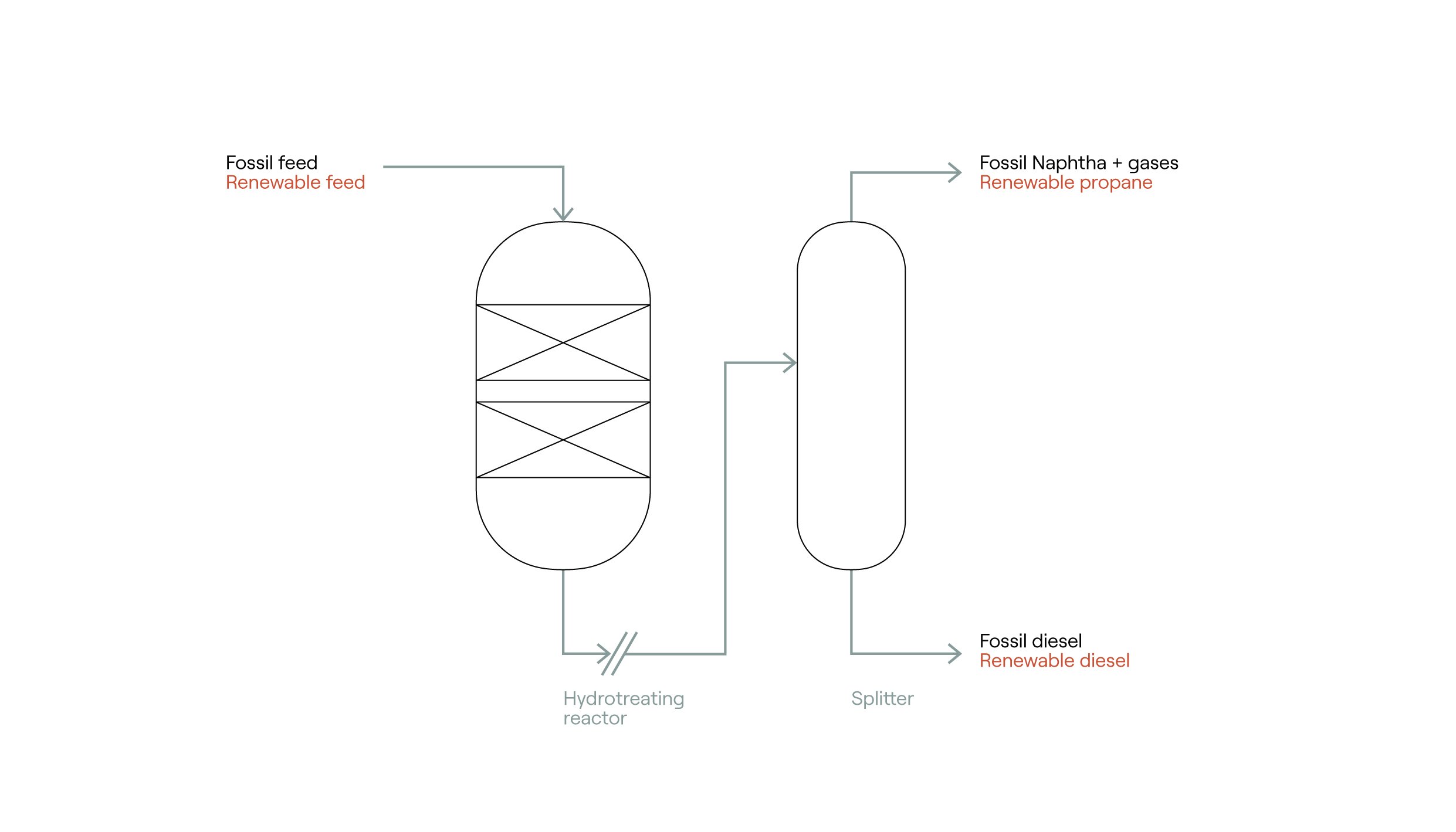

    • You can choose your own co-processing starting point  co-processing for diesel flow diagram

    Renewable feed in, renewable product out. This illustration of a hydrotreating unit with a splitter visualizes how introducing renewable feedstock into your unit enables your production of a mix of fossil diesel and renewable diesel.
